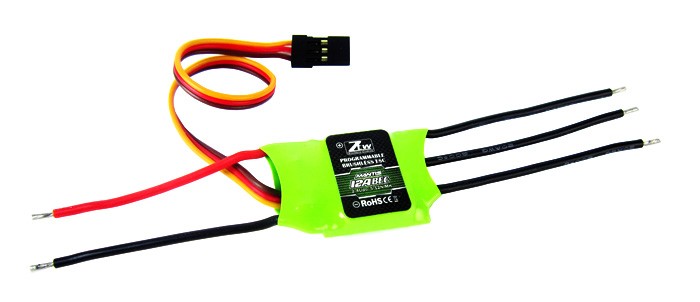

ZTW 12A Brushless ESC

ZTW 12A Brushless ESC

This ZTW 12A Programmable Brushless ESC is perfect for mid-size scale, sport or 3D airplanes. This ESC's internal BEC and low-voltage cutoff settings make it ideal for use with 2S (7.4V), 3S (11.1V), or 4S (14.8V) Li-Po batteries. Better yet, the ZTW 12A will auto-detect the number of lipo cells in your battery and set the appropriate cut-off voltage without any programming required.

All ZTW A-Series ESCs provide a variety enhanced performance and safety features, including super-smooth and accurate throttle linearity, extremely low internal resistance, auto throttle shutdown if signal is lost, thermal overload protection, and more. For users whose projects demand versatility, this ESC offers a variety of advanced programming options:

Motor Brake
Battery Type
Low Voltage Cutoff Threshold
Timing Setup
Soft Start
Governor Mode
Frequency
Low Voltage Cutoff Type
Specifications:

Maximum Current (Continuous/Burst): 12A/16A
Cell Count:
Lipo: 2-4
NiMH/NiCd: 5-12
Weight: 10g / 0.35 oz
Dimensions: 23 x 22 x 8mm / 0.91 x 0.87 x 0.31 in
BEC Output: 5V / 1A
